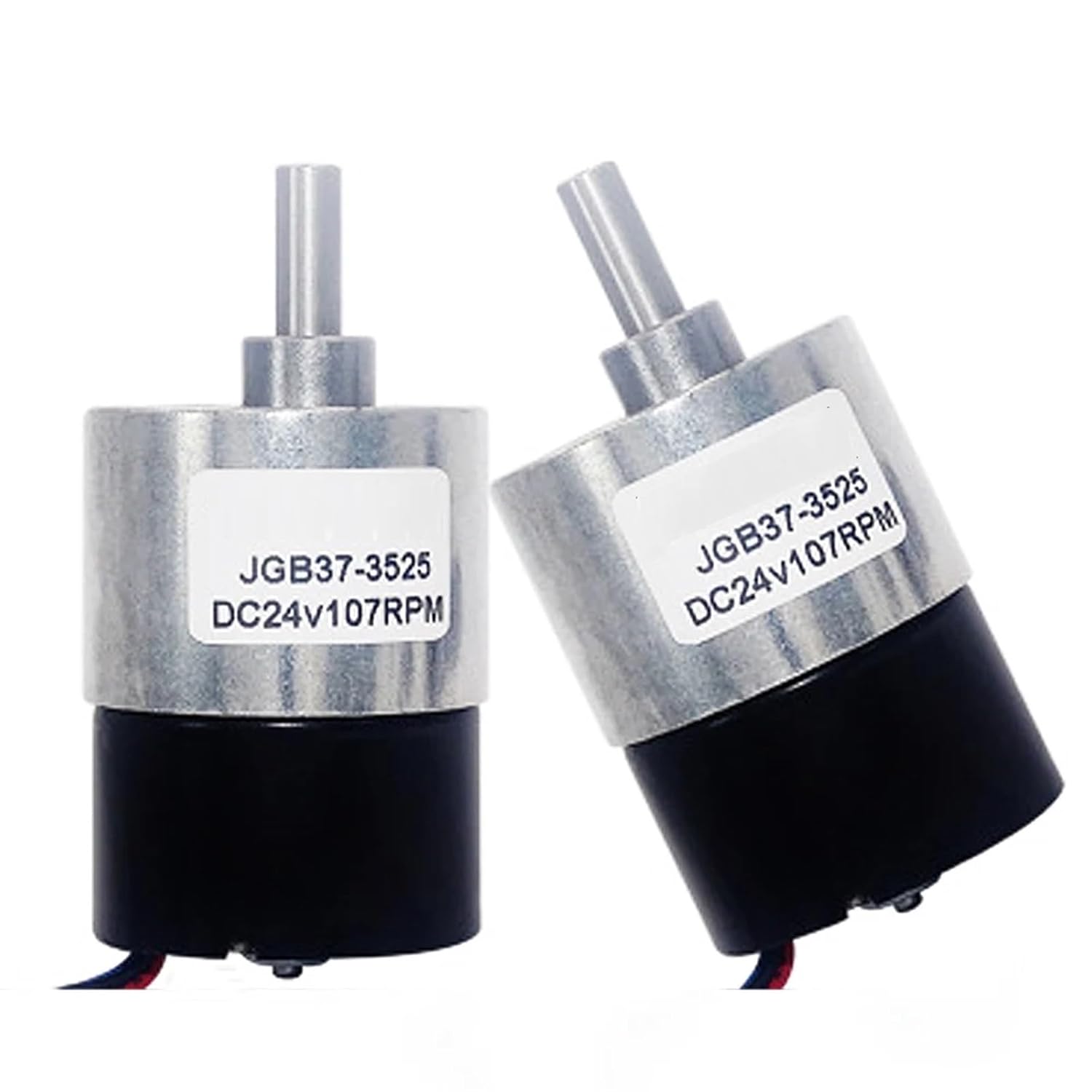

12V/24V DC Brushless Gear Motor JGB37-3525 Speed Regulating Motor 12RPM 22RPM 35RPM 45RPM 66RPM 200RPM 600RPM 960RPM Reversible (Color : 320rpm, Size : 24V)
Product details
| Management number | 219309783 | Release Date | 2026/05/03 | List Price | $28.34 | Model Number | 219309783 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

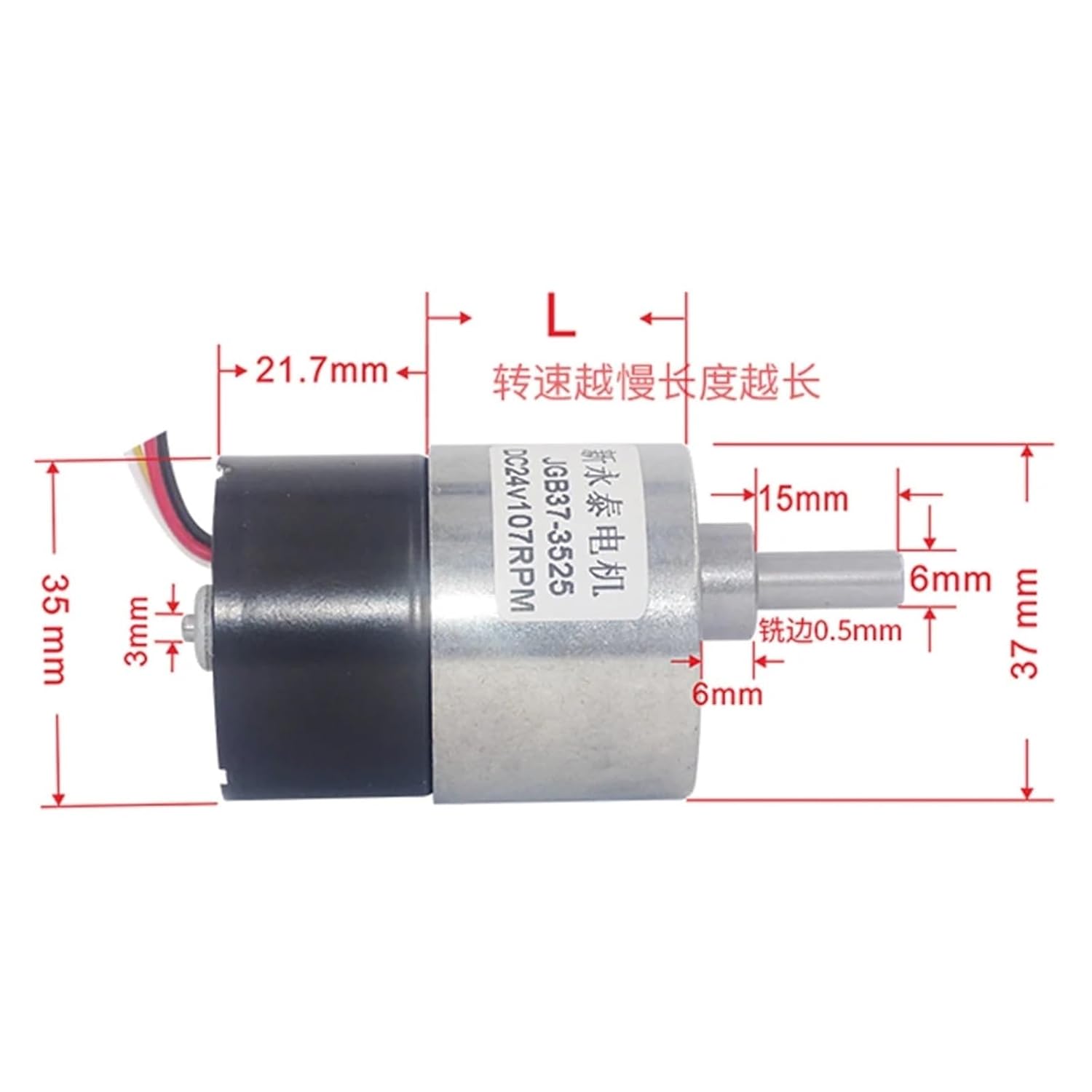

Gear Stock & Pinion WireSpecifications:Voltage:DC12VNo-loadSpeed:480rpm,300rpm,160rpm,100rpm,53rpm,33rpm,22rpm,17rpm,11rpm,6rpm,4rpmVoltage:DC24VMotor Diameter: about 37mmMotor Body Length: 25mmOutput Shaft Diameter: 6mm(D-Type)Output Shaft Length: 12mmGearbox Length: see the tableWire Connection Method:Red line: power +Black line: Power -White line: CW / CCW control line,White line and black line together, you can change the motor directionBlue line: PWM speed control line, then 0 ~ 5V pulse width governorYellow line: FG signal line
- Gear Stock & Pinion Wire
| Model | COKYIS |
|---|---|
| Brand Name | COKYIS |
| Model Name | COKYIS |
| Unit Count | 1.0 Count |
| Item Weight | 50 Grams |
| Part Number | COKYIS |
| Manufacturer | COKYIS |
