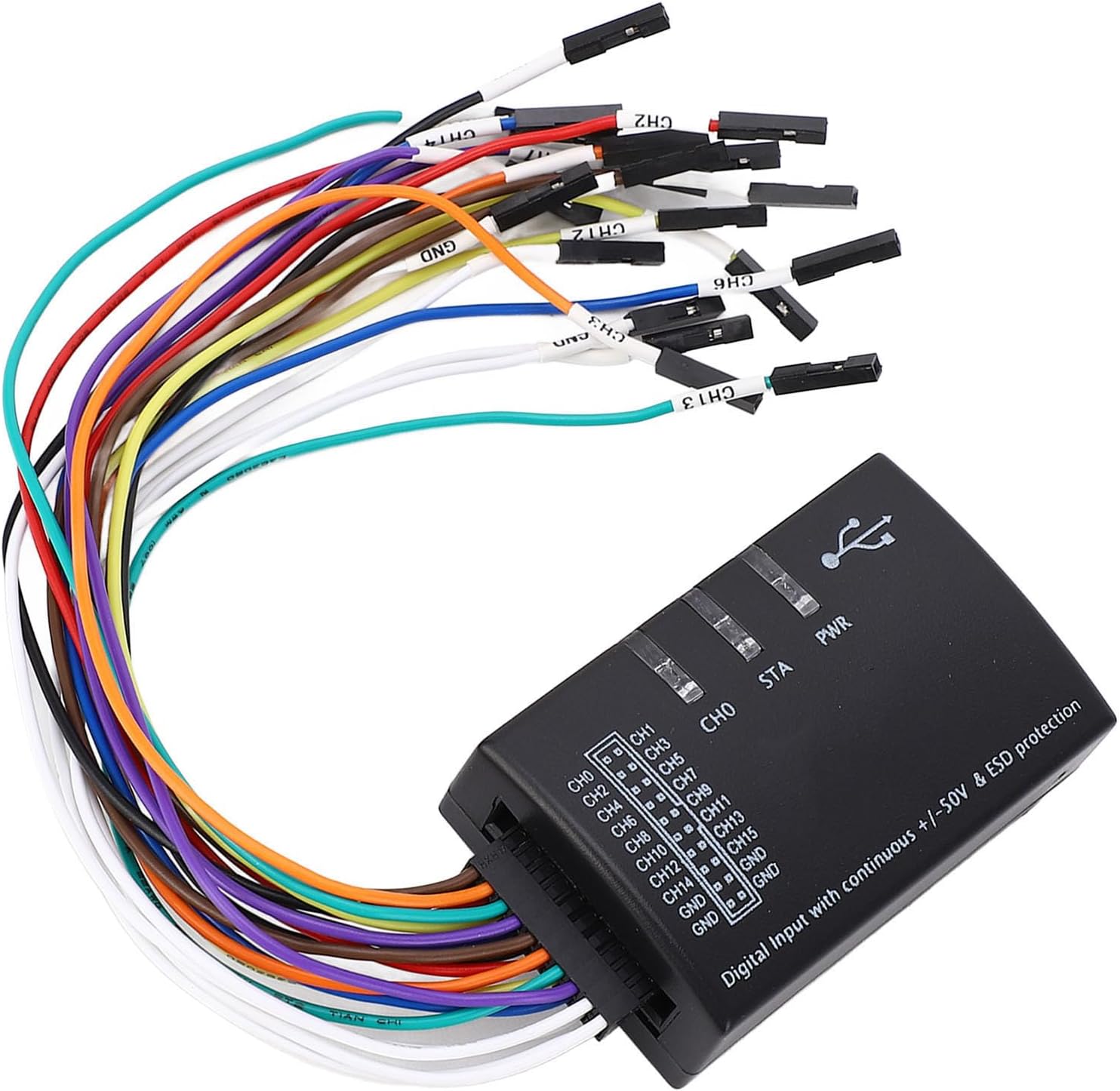

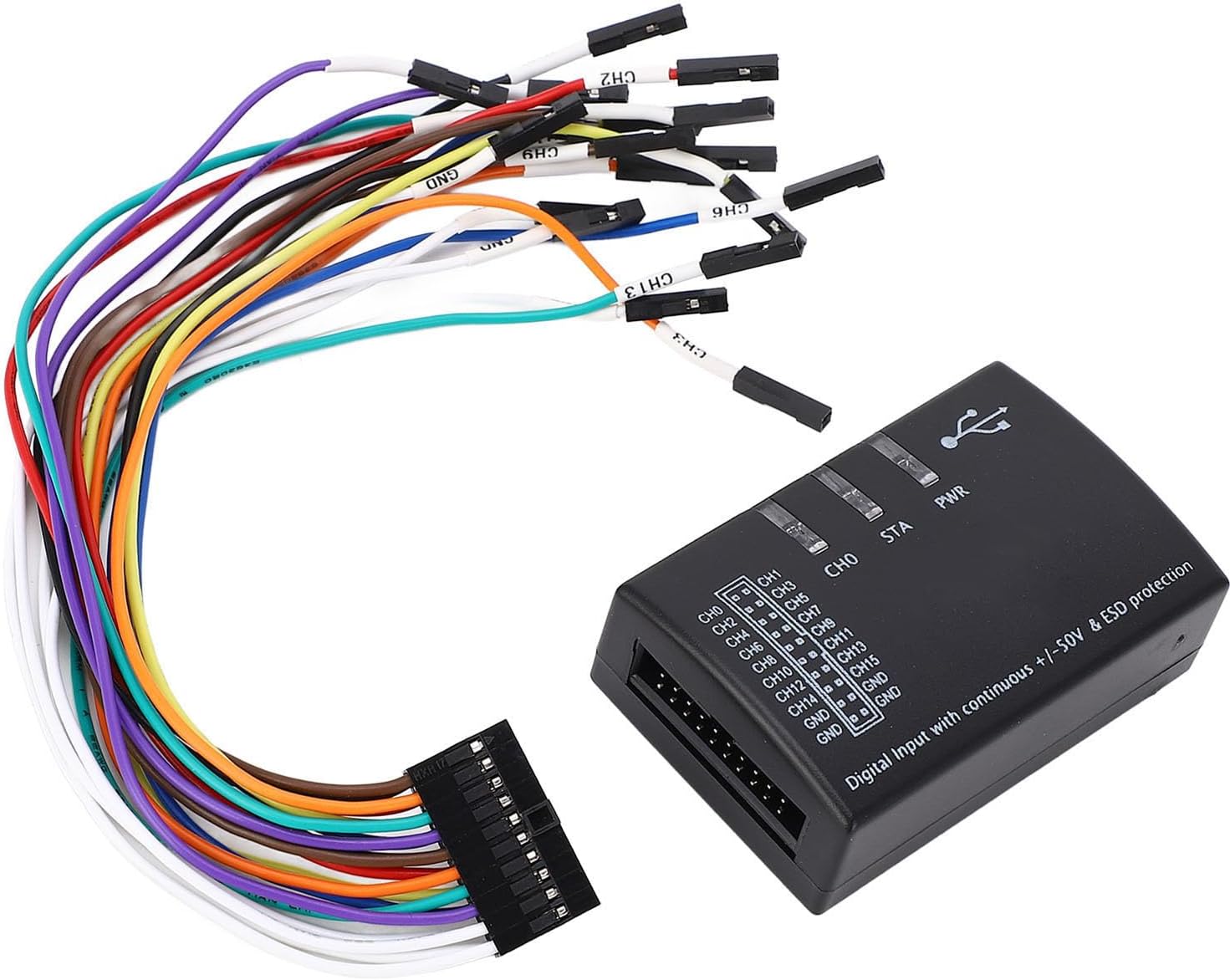

16 Channel Logic Analyzer, High Sampling Rate, Multi Protocol Analysis, 100M with, Compatible Official Genuine Software

Specification: Item Type: Logic Analyzer Material: ABS Channels: 16 Sampling Rate: MAXIMUM.100M How to Use: Compatible with official genuine software, supports all 32 bit and 64 bit systems of for for , and for OS X. Packing List: 1 x Logic Analyzer 1 x Connection Cable 4 x Accessories 1 x Logic Analyzer 1 x Connection Cable 4 x Accessories 1. Try to connect to the USB port at the back of the desktop computer. Connecting to the front USB port may result in low speed issues due to long low quality internal wiring connecting the front panel of the host to the computer motherboard. 2. The performance of USB ports on laptops and the quality of USB power are often inferior to desktop computers, making it more likely to encounter low speed prompts. 3. Using a USB HUB also affects the sampling rate and USB power quality. 4. If there are other USB devices such as WIFI cards, USB flash drives, etc. next to the USB port, it may also affect the sampling rate. 5. Before shipping each logic analyzer, we have conducted 3 channel 100M acquisition tests on multiple computers to ensure the performance of the product. 6. The PCB board is meticulously designed from component selection to layout wiring to ensure high USB performance and has passed electromagnetic interference tests.

• [16 CHANNEL LOGIC ANALYZER] Supports latest LOGIC2 software, download from official site. Compatible with , OS X. Custom Protocol Analysis Settings for accurate analysis.
• [HIGH SAMPLING RATE] Supports 100M sampling with 3 channels, ensuring detailed data collection. USB 2.0 high-speed mode required for optimal performance.
• [POWERFUL PROTOCOL ANALYSIS] Covering 17 serial protocols including SPI, UART, CAN, JTAG, 1 WIRE, for comprehensive bus analysis. Simultaneously analyze multiple protocols in real-time.
• [EASY PROTOCOL DEBUGGING] Easily adjust parameters for RS232, UART with precision. Debug and save analysis content in various formats for efficient troubleshooting.
• [MULTI PROTOCOL ANALYSIS] Display data in ASCII, hexadecimal, decimal, octal, binary formats. Versatile tool for board-level and field-level bus analysis.
