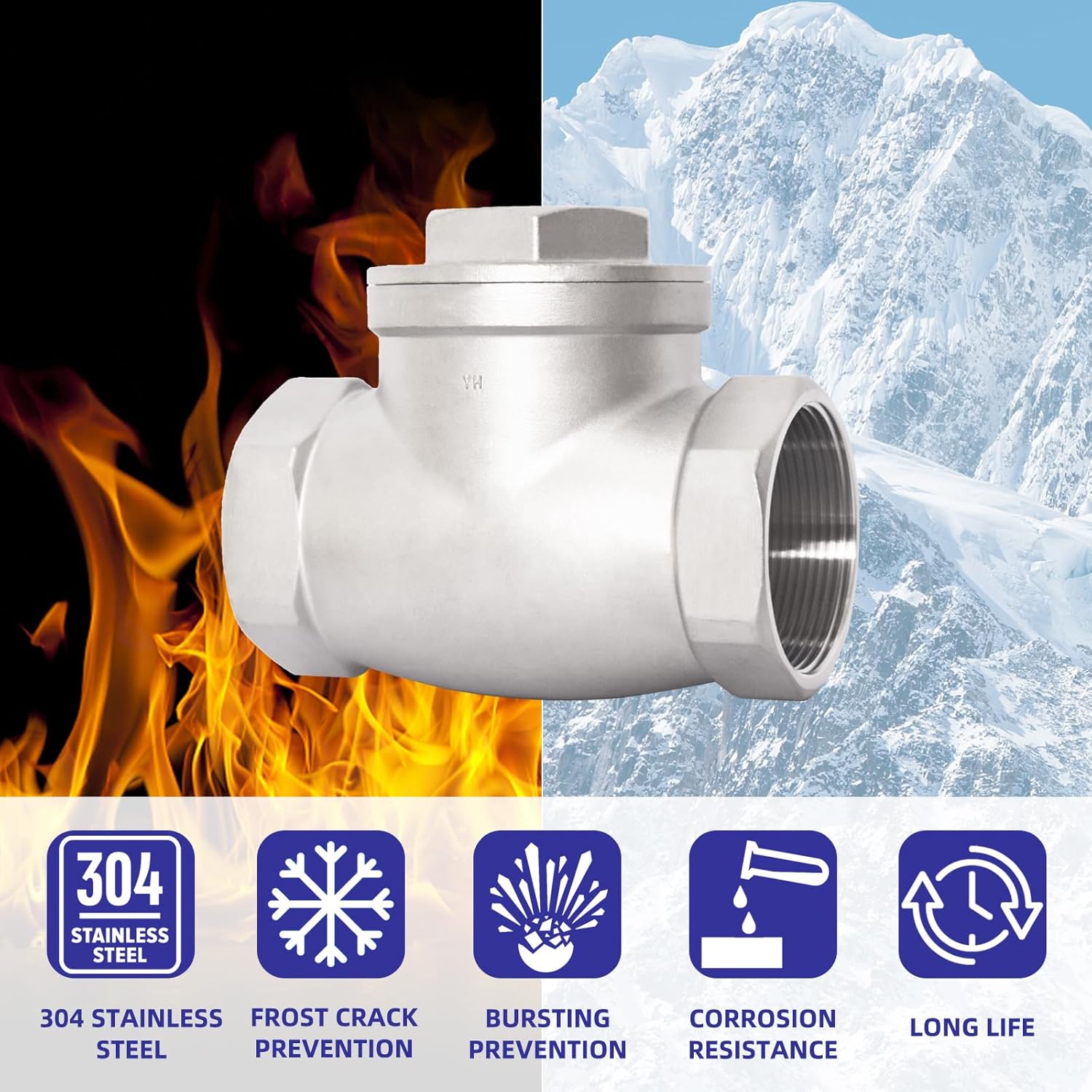

3" NPT Horizontal Check Valve, Stainless Steel Non Return Swing Check Valve, Level One Way Counterflow Valve to Prevent the Medium Backflow for Oil Water Gas Air（3", DN80）
Product details
| Management number | 221423702 | Release Date | 2026/05/03 | List Price | $38.40 | Model Number | 221423702 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ONE WAY FLOW CONTROL -- It is a kind of valve that relies on the pressure of the medium to produce the effect of preventing the backflow of the medium. Only allows the medium to flow in one direction, to prevent the medium backflow.
- EXPLOSION-PROOF & WEAR-RESISTANT -- The valve body is characterized by pressure and explosion resistance, high temperature resistance and durability... It has uniform wall thickness, high wear-resistant strength and long service life.
- SUPERB CRAFTSMANSHIP -- The stainless steel check valve inner wall polishing treatment, smooth surface, no scaling, no clogging, practical and durable.
- WIDE RANGE OF USES -- A variety of specifications are available for most piping systems. Widely used in chemical, construction, petroleum, light and heavy industry, fire fighting, electric power, aerospace, shipbuilding ...

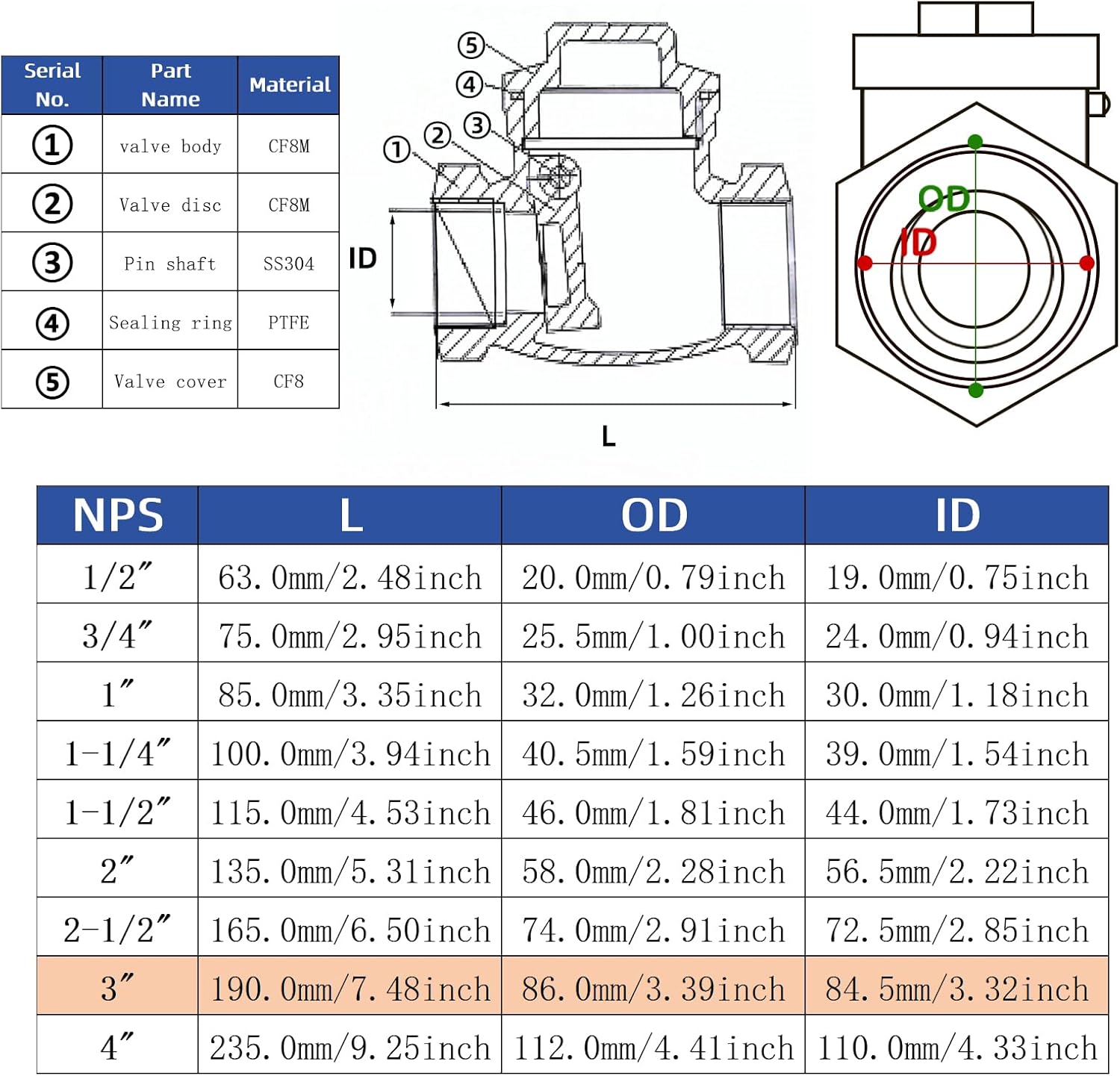

- INSTRUCTION -- Maximum working pressure: 1.6 MPa / 232.06 psi. Applicable temperature: FROM -196℃ TO +800℃（FROM -320.8℉ TO 1472℉）, Flow direction: unidirectional, media range: water, oil, non-corrosive flammable gas. Please select the appropriate size horizontal check valve according to the size chart.
| UPC | 643459477452 |
|---|---|
| Size | 3"-NPT |
| Brand Name | SYWUWV |
| Unit Count | 1.0 Count |
| Valve Type | Swing Check Valve |
| Manufacturer | SYWUWV |
| Model Number | SYWUWV0643459477452 |
| Material Type | Stainless Steel |
| Exterior Finish | Stainless Steel |
| Number of Ports | 2 |
| Maximum Pressure | 1600 Kilopascal |
| Specification Met | ASTM, ISO 9001, MSS SP 72, MSS SP 80 |
| Inlet Connection Size | 3 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 3 Inches |
| Outlet Connection Type | National Pipe Tapered |
| Manufacturer Part Number | 3" NPT |
