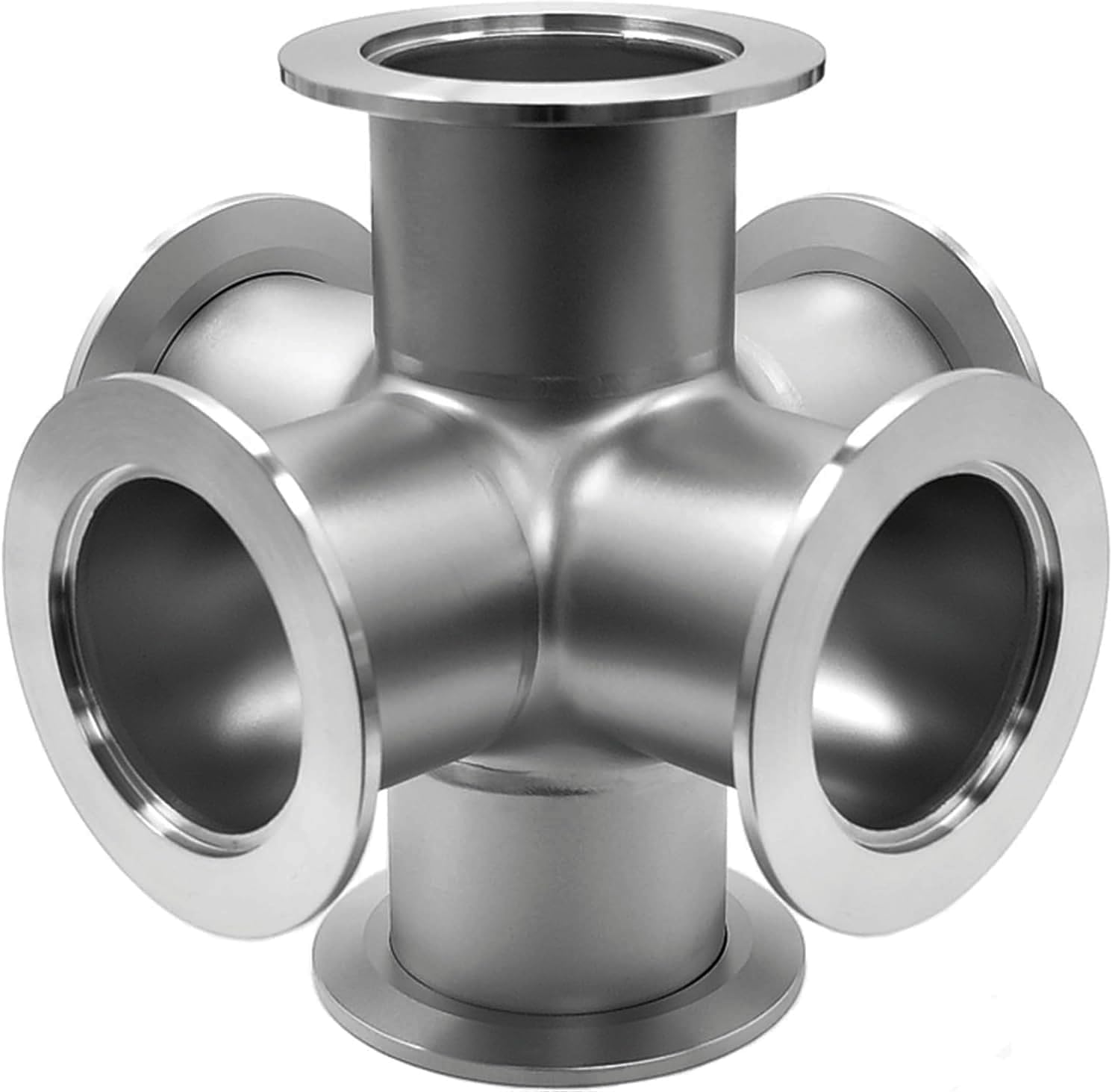

6-Way Cross KF-16 Vacuum Fittings, ISO-KF Flange Size NW-16, Stainless Steel Adapter Vacuum Fitting (KF16)
Product details
| Management number | 221458207 | Release Date | 2026/05/03 | List Price | $49.20 | Model Number | 221458207 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification:These KF-16 6-way cross vacuum fittings follow ISO-KF standards and have a flange size of NW-16. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges. The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of corrosive resistant 304 stainless steel.Package:1*KF-16 6-way cross vacuum fittings
- ISO-KF Flange Size: NW-16
- Common Dimensions: A=3.15"(80mm), B=1.6"(40mm)
- A 6-way junction facilitates the inclusion of intersections or alignment in designing a vacuum system.
- This is a vacuum fitting that connects five KF-sized vacuum flanges. It is used with wing-nut clamps and it is made from Stainless Steel.
- Materials: Stainless steel 304
| Size | KF16 |
|---|---|
| Color | Stainless Steel |
| Brand Name | DEKADONS |
| Manufacturer | DWKADONS |
| Model Number | 6-way cross vacuum fittings |
| Connector Type | Stainless Steel |
| Exterior Finish | Stainless Steel, 6-way cross vacuum fittings |
| Item Dimensions | 2 x 2 x 3 inches |
| Included Components | KF16/KF25/KF40/KF50 |
