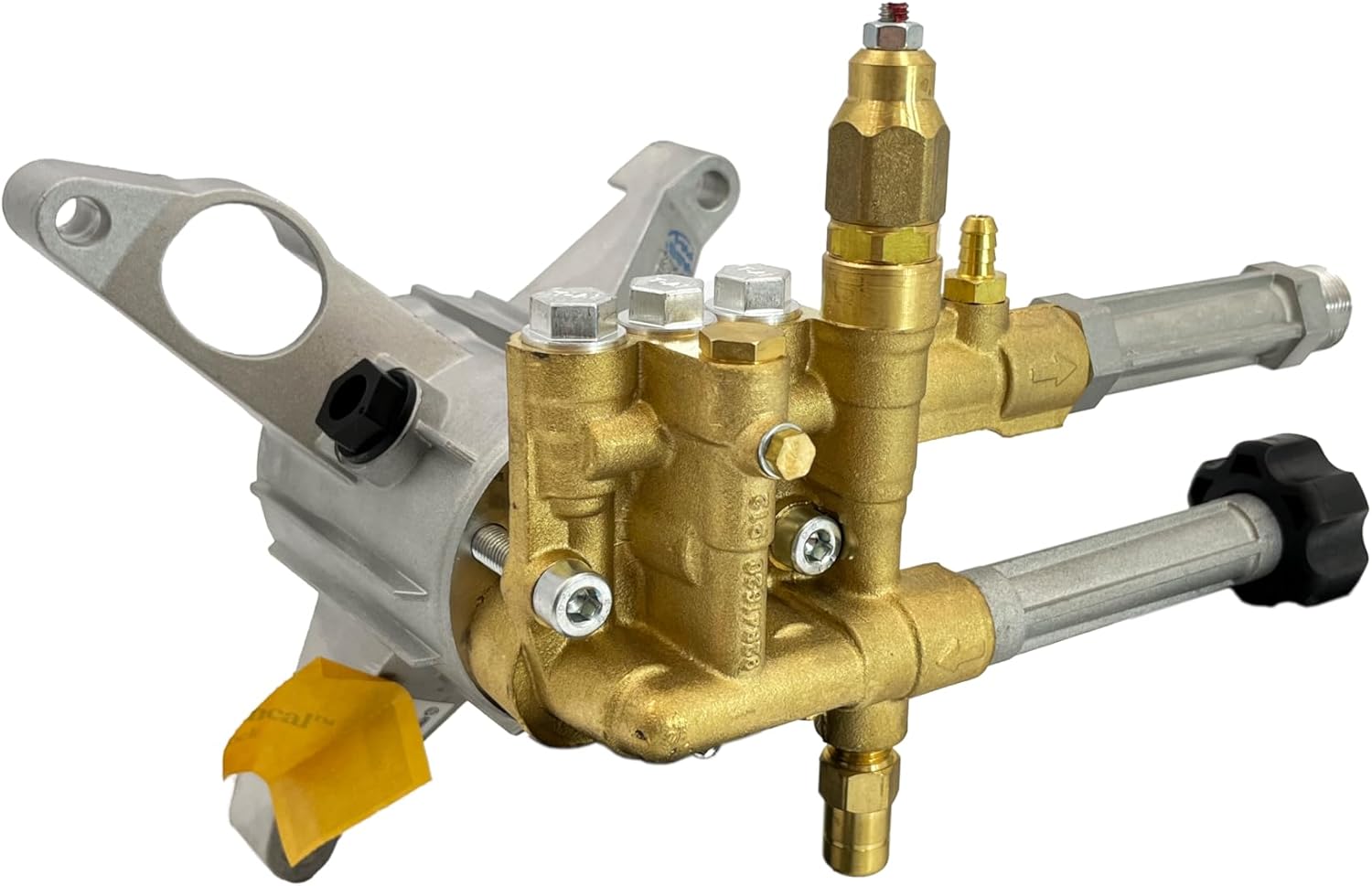

AR Annovi Reverberi RMW25G28-EZ Replacement Non SX Right-Handed Pump. 2800 PSI, 2.5 GPM, 193 Max Bar, Easy Start Valve, Thermal Relief Valve. Residential Pump

Angove Riverberry offers the RMW25G28-EZ and RMW25G28-EZ-SX 2,800 PSI triplex plunger pumps in two different mounting configurations. This pump is for vertical gas engine driven units. Please reference the pictures below showing the mounting difference between the two models. Specifications: 2.5 GPM at 2,800 PSI and spins at 3,400 RPM. This pump mounts directly on to the engine shaft by using a keyed hollow shaft connection system. The mounting flange provides a convenient connection to most 7/8” diameter shaft vertical gas engines in 4 - 7 HP (reference the cc to HP chart) and fits most OEM carts. The pump includes a built-in pressure control valve, downstream chemical injection system, EZ start valve and thermal relief valve. 3-piston alternating volumetric pumps for use on cleaning units Can be directly coupled to various types of motors Different delivery connections available Optional detergent suction system Integral regulating valve Pump body in die-cast aluminum alloy Pistons driven by swash plate mechanism Two bearing systems, to support the pump shaft and pistons in hardened and tempered steel Pump head in pressed brass Double gasket sealing system Intake valves fitted above the pistons for greater efficiency Specifications Max GPM 2.5 Max L/Min 9.5 Max PSI 2800 Ambar 193 Power EBHP 4.3 Bore Die mm 12 Stroke mm 9.7 Crankshaft ID Stamp 1 Inlet 3/4" GHA Outlet 22mmx1.4 M Max Temp 140° F Oil Capacity (oz.) 2.2 Weight 7.7 RPM 3400 Shaft Size 7/8" Shaft Version D Shaft Type Hollow

• Maximum psi: 2800
• Maximum gallons per minute: 2.5 GPM
• Rotations per minute (RPM): 3,400
• Shaft direction: standard
• Start style: EZ Start
