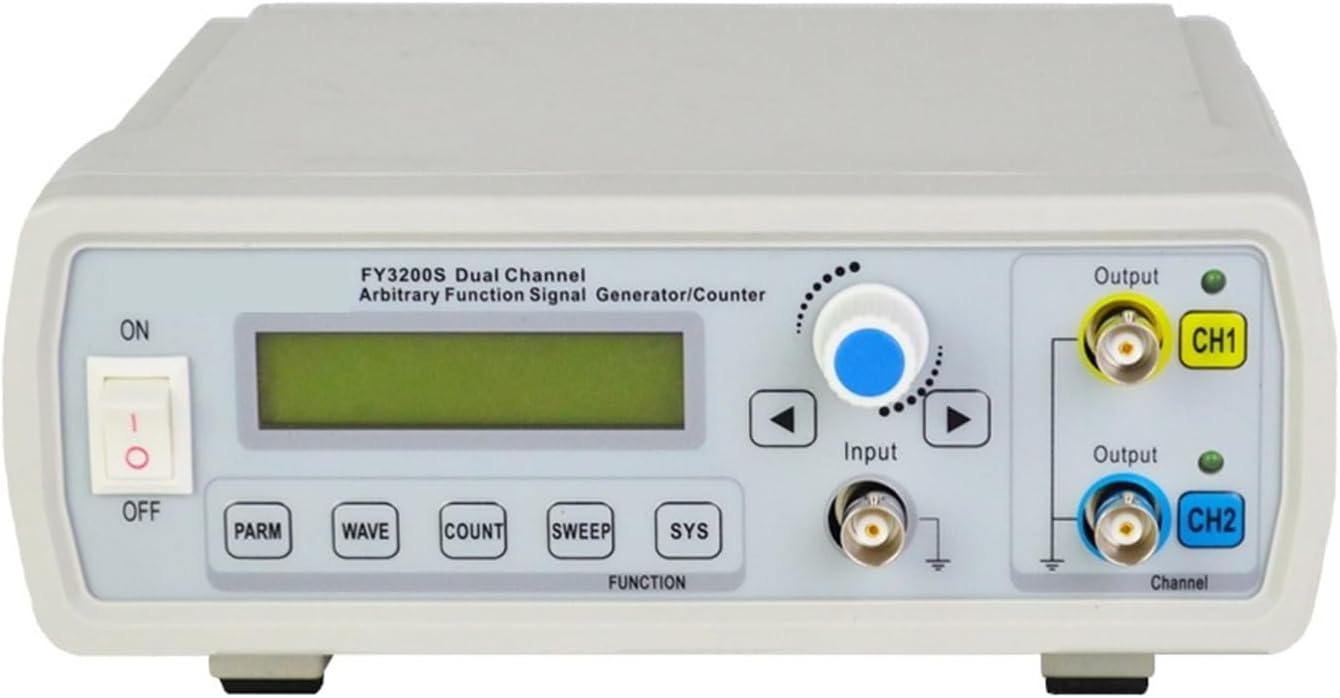

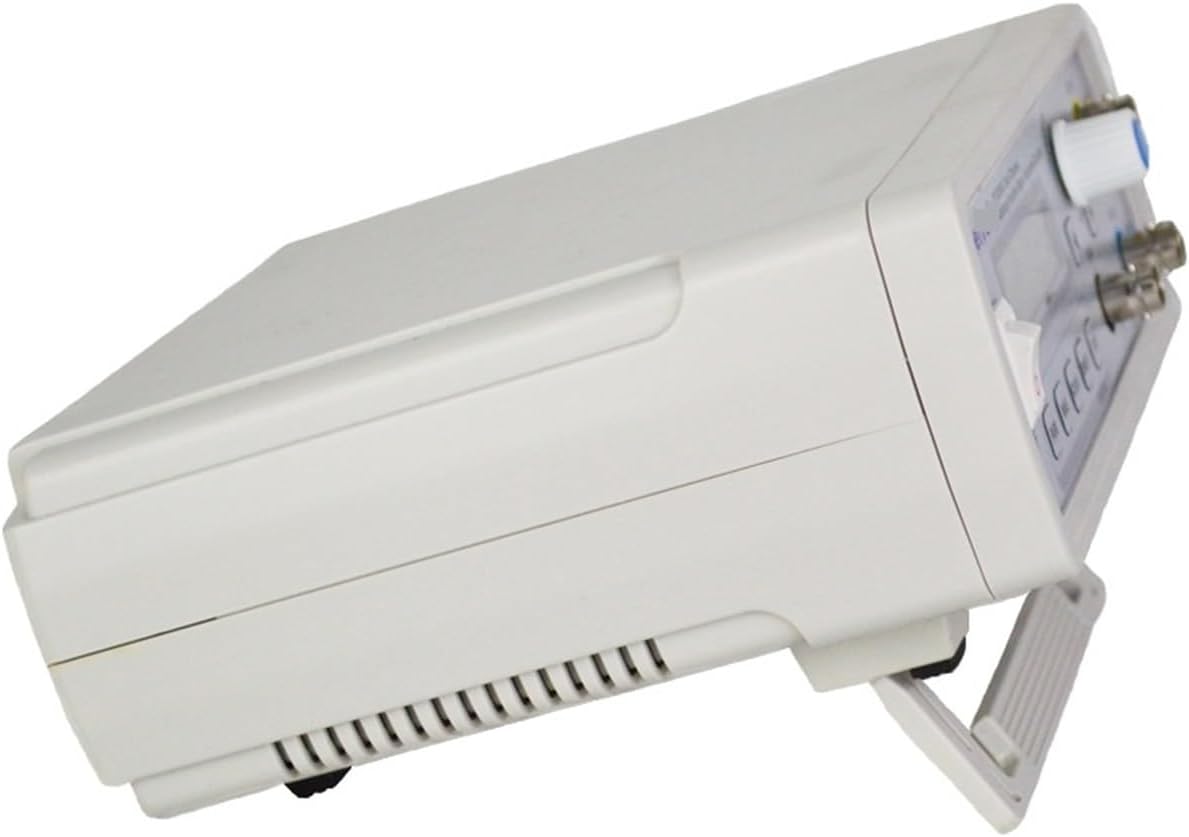

FY3200S-24M Signal Generator Digital Control Dual Channel DDS Function Signal Generator Frequency Meter Arbitrary

Model：FY3200S-24MHzSine：0~24MHzSquare：0~6MHzRamp/Triangle：0~6MHzPulse：0~6MHzTTL/CMOS：0~6MHzArbitrary wave：0~6MHzResolution：0.01Hz(10mHz)Accuracy：± 5×10-6Stability：±1×10-6/ 3 HoursPhase Range：0~359°Phase Resolution：1°Waveform CharacteristicsWaveforms：Sine, Square, Triangle (Ramp), Arbitrary, Sawtooth, Pulse, Noise, etc.Waveform Length：2048PointsSampling Rate：250MSa/sVertical Resolution“12 BitsSine<;1MHz);≥40dBc(1MHz~20MHz);<;0.8% (20Hz~20kHz,0dBm)SquareRise/Fall Time：≤20nsOvershoot：≤7.5%Duty Cycle：0.1%~99.9%SawtoothLinearity：≥98% (0.01Hz~10kHz)Output characteristicsAmplitude (50Ω)：10mVpp~20Vpp (No load)Amplitude Resolution：10mVAmplitude Stability：±0.5%/ 5 HoursAmplitude flatness：±5%(<;10MHz)；±10%(>10MHz);Waveform OutputImpedance：50Ω±10%（Typical）Protection：All channels can work more than 60 seconds when the load is short-circuited.Dc OffsetOffset Range：±10VOffset Resolution：0.01V TTL Output：Dual-channel TTL electric level synchronize with CH1 and CH2. Phase differences are adjustable.Electrical Level Amplitude：>3VppFan-out：>20 TTL LoadRise/Fall Time：≤20nsCMOS Output<;0.3VHigh Electric Level：1V~10VRise/Fall Time：≤20nsFrequency MeterRange：1Hz~100MHz (Gate Time 1S)CounterRange：0-4294967295Voltage Input Range：2Vpp~20VppSweep：Only CH1 availableSweep Type：Linear or LogarithmSweep Objects：Frequency Sweep Time：1S~999S/StepSweep Range：Starting position and Finishing position can be set arbitrarily.
