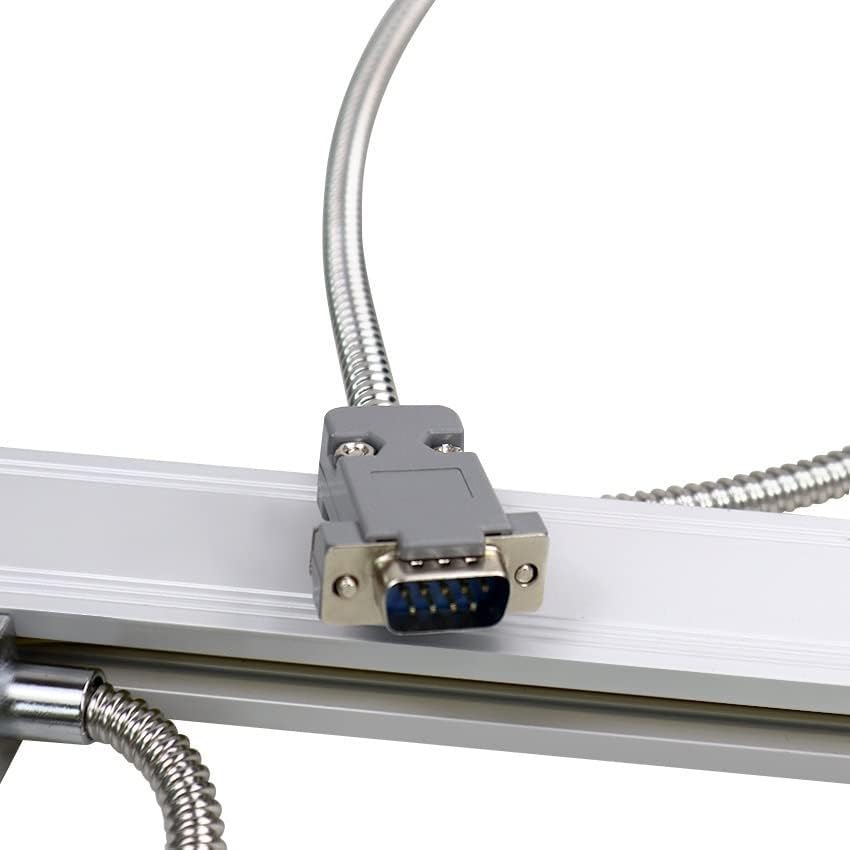

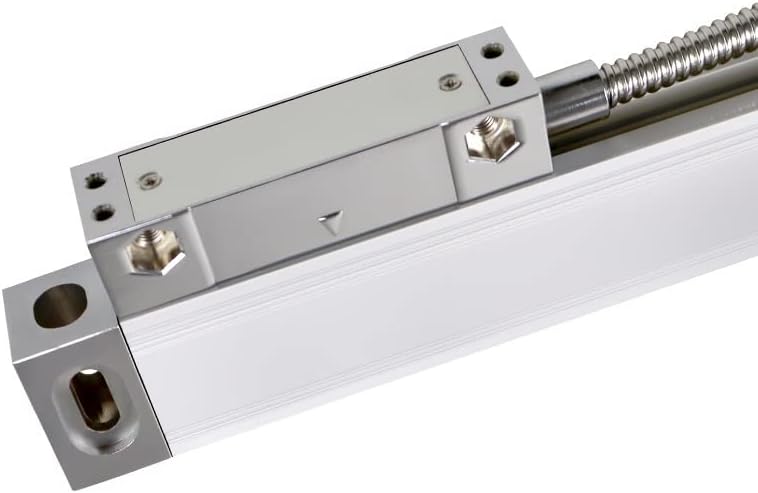

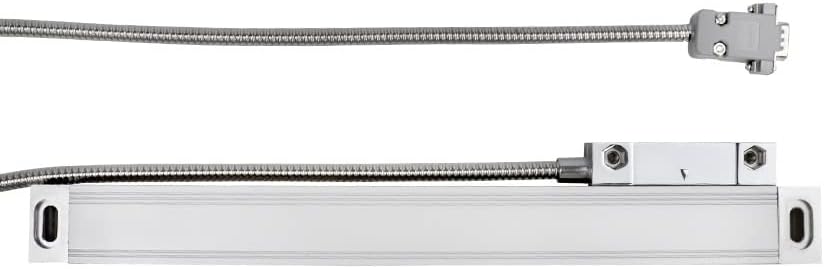

LIAMOS Linear Ruler Linear Scale for Lathe Mill CNC Machines Working Length 0-1000mm 5U 5V TTL Signal Linear Encoder,Precise Measurement(Working Length 700mm)
Product details
| Management number | 228198718 | Release Date | 2026/05/31 | List Price | $74.47 | Model Number | 228198718 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Linear Ruler Linear Scale For Lathe Mill CNC Machines Working Length 0-1000mm 5U 5V TTL Signal Linear Encoder5u Linear Scale/Linear Encoder/Linear Sensor/Linear RulerParameter1. Travel (measuring) length: 0-950mm2. Total (overall) length: Travel length + 140mm3. : DB94. Resolution: 0.005mm (0.001mm need extra fee)5. Input voltage: 5V6. Grating pitch: 0.02mm (50LP/min)7. Cable length: 3 Meter (about 9 feet)8. Normal size: About 22*34The Signal of 5uLinear optical ruler/Linear glass scales/Linear encoder/Linear sensorPin 2 Black 0VPin 6 Green APin 7 Red 5VPin 8 White BPackage includes1 pcs linear scale1 pcs scale cover1 pcs L connecting bracket1 pcs screw bag1.Eliminate machine tool position errors caused by thermal expansion, deformation of the drive mechanics, pitch issues and more.2.High long-term speed stability.3.Sturdy construction and high resistance to vibration.4.Finer signal periods offer highest interpolation accuracy.5.Compact, lightweight and easy to install.6. and dependable-functions properly even after many years of operation.7.Sealed or enclosed linear designs available.
- 1.Eliminate machine tool position errors caused by thermal expansion, deformation of the drive mechanics, pitch issues and more.
- 2.High long-term speed stability.
- 3.Sturdy construction and high resistance to vibration.
- 4.Finer signal periods offer highest interpolation accuracy.
- 5.Compact, lightweight and easy to install.
| ASIN | B0D4YHKDW8 |
|---|---|
| Department | Unisex Adult |
| Item Weight | 0.353 ounces |
| Manufacturer | LIAMOS |
| Number of pieces | 1 |
| Assembly required | No |
| Item model number | 1005001464752795 |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
