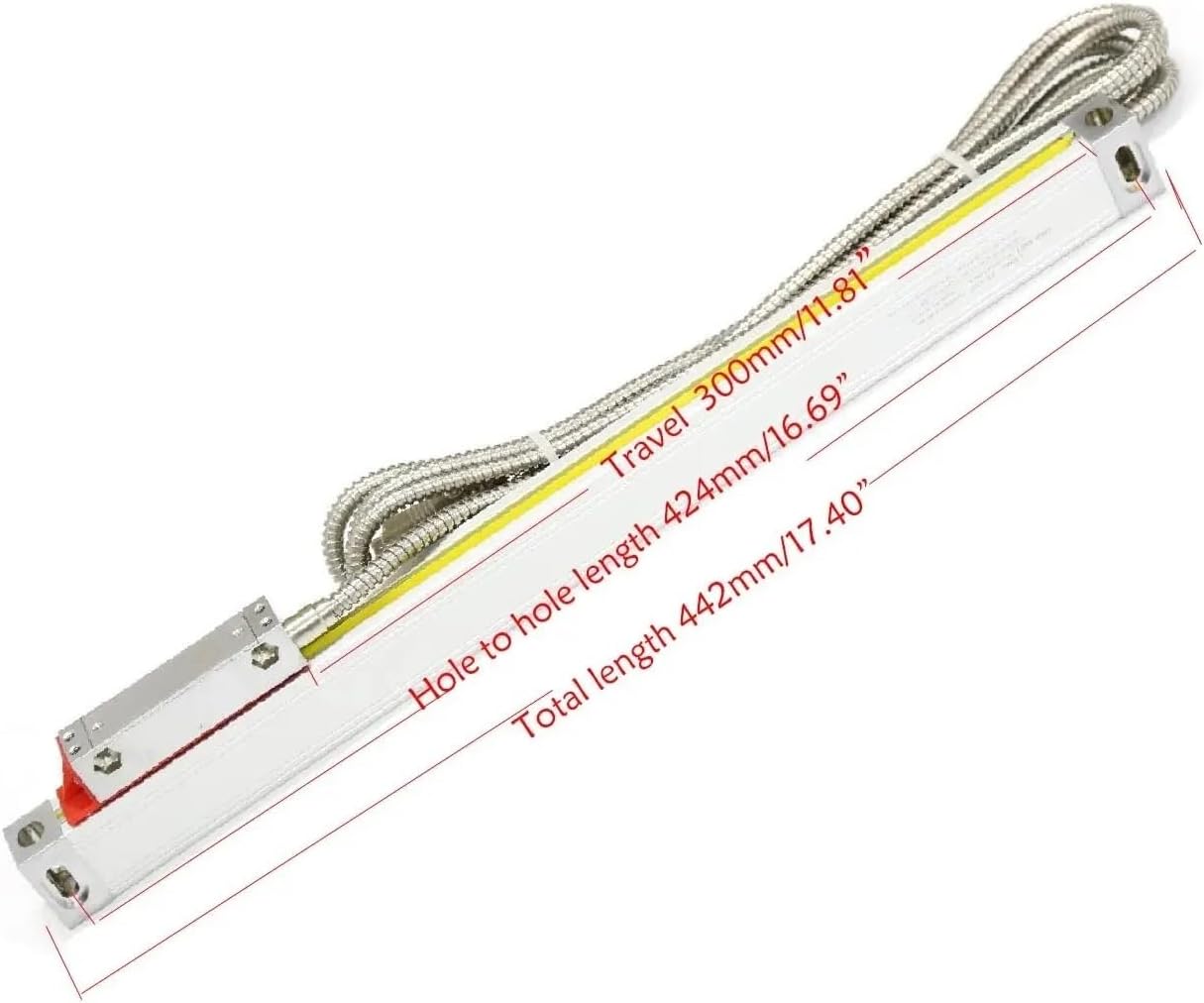

LIAMOS Slim High Precision 0.005mm Thin Lathe Linear Scale TTL 50 100 150 200 250 300 350mm 20x28mm Small Linear Encoder Grating Ruler,Precise Measurement(300mm Travel Length)
Product details
| Management number | 228198699 | Release Date | 2026/05/31 | List Price | $56.64 | Model Number | 228198699 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1. Travel (measuring) length: 50/100/150/200/250/300/350mm2. Total (overall) length: Travel length + 142mm3. interface: DB94. Resolution: 0.005mm5. Input voltage: 5V6. Grating pitch: 0.02mm (50LP/min)7. Cable length: 3 Meter8. Normal scale dimension: 20*28mm9.Accuracy:±3/5/8um10. Output signal:TTL11. 9DB pin wire as follows:pin 2=0V,pin 6=A signal,pin 7=5Vpin 8=B signalpin 1,3,4,5,9 is empty
- Precision Measurement: With a resolution of 0.005mm and accuracy of ±3/5/8µm, this linear scale ensures exceptional precision for all your machining needs
- Versatile Travel Lengths: Available in multiple travel lengths (50/100/150/200/250/300/350mm), making it adaptable for various machine types and applications
- Easy Integration: Equipped with a DB9 interface and TTL output signal, this scale easily connects to most digital readouts and controllers for seamless operation
- Design: Featuring a sturdy 20mm x 28mm profile, the scale is built to withstand the rigors of a machine shop while maintaining high performance
- Extended Cable Length: With a generous 3-meter cable, installation flexibility is enhanced, allowing for optimal positioning in your workspace
| ASIN | B0DMS5Y2XK |
|---|---|
| Model | 1005006716424105 |
| Brand Name | LIAMOS |
| Unit Count | 1.0 Count |
| Item Weight | 50 Grams |
| Part Number | 1005006716424105 |
| Manufacturer | LIAMOS |
