MADAT V8043E1012 Zone Valve Motor Fit for Honeywell V8043E1061 V8043E1079 V8043E1020 18" Leads with End Switch Zone Valves Head 24Vac 50/60Hz Replace 40003916-026 Motorized Valve

V8043E1012 Replacement Motor Head Fit for Honeywell V8043E Product Specification Frequency: 50/60 hz Rated current: 0.32 Amp Rated voltage: 24 volts AC Valve action: spring return to close Electrical connection: screw terminal Electrical Connections: 18" (457mm) leads Ambient temperature rating: 125 degrees Fahrenheit Connection type: 18-inch wire on the same side of the manual lever Electrical connection position: on the same side of the manual rod Auxiliary switch rating: 4.4A, 120V (operating), 50V amperes at 24V (pilot load) Fitment: Fit for Honeywell V8043E series zone valve V8043E1012 V8043E1061 V8043E1079 V8043E1020. Replace 40003916-026/U(40004850-001), includes 802360JA motor. Tips: This V8043E1012 is suitable for relatively new style valves. Please look inside the power head, the manual switch is on top, make sure there are only screws on the top left and bottom right corners of the base plate, and not on the other two corners. If there are 4 screws, it means you have a very old valve and may need a conversion kit 4003918. Manual opener (on all models, except straight-through, normally open valves) is use to operate valves in the event of a power failure. The valve returns to the automatic position when the power is restored. Note: Auxiliary switch is not energized when the valve is manually opened. Only the motor will move the valve to the fully opened position to activate the end switch when the power head energized. You can feel the flow of hot water by touching the pipe

• This zone valve motor fits for Honeywell V8043E series zone valve V8043E1012 V8043E1061 V8043E1079 V8043E1020
• Zone Motor Head Replacement: This V2043E zone valve replaces 40003916-026/U(40004850-001)
• Features: V8043E1012 valve motor is the perfect replacement for Honeywell zone valves for circulating water and controlling the flow of hot water, it will help you extend the life of your heating system and prevent the valve from failing on cold nights

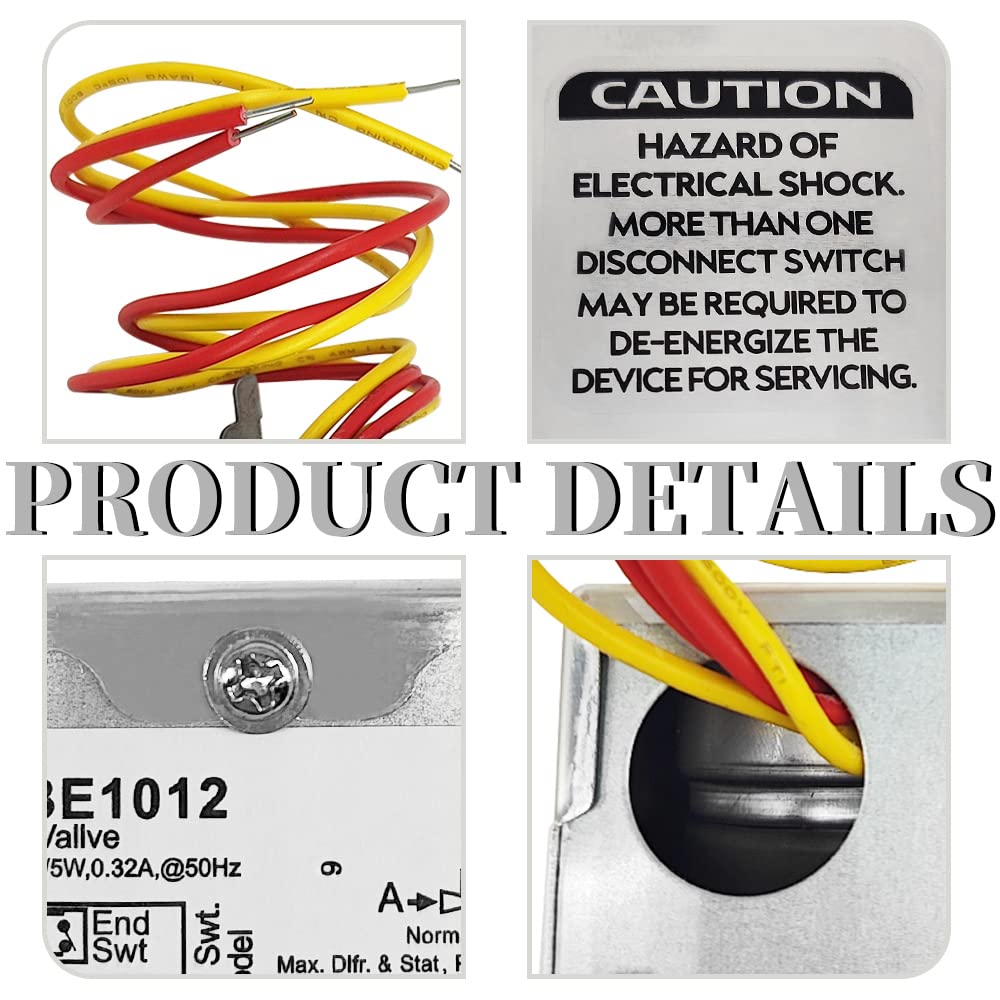

• Sturdy and Durable: The zone valve is made of high quality metal and withstands a maximum ambient temperature of 125°F with 18" leads. Compact, high temperature resistant and corrosion resistant
• Tips: This V8043E1012 is suitable for relatively new style valves. Please look inside the power head, the manual switch is on top, make sure there are only screws on the top left and bottom right corners of the base plate, and not on the other two corners. (If there are 4 screws, it means you have a very old valve and may need a conversion kit 4003918.)
