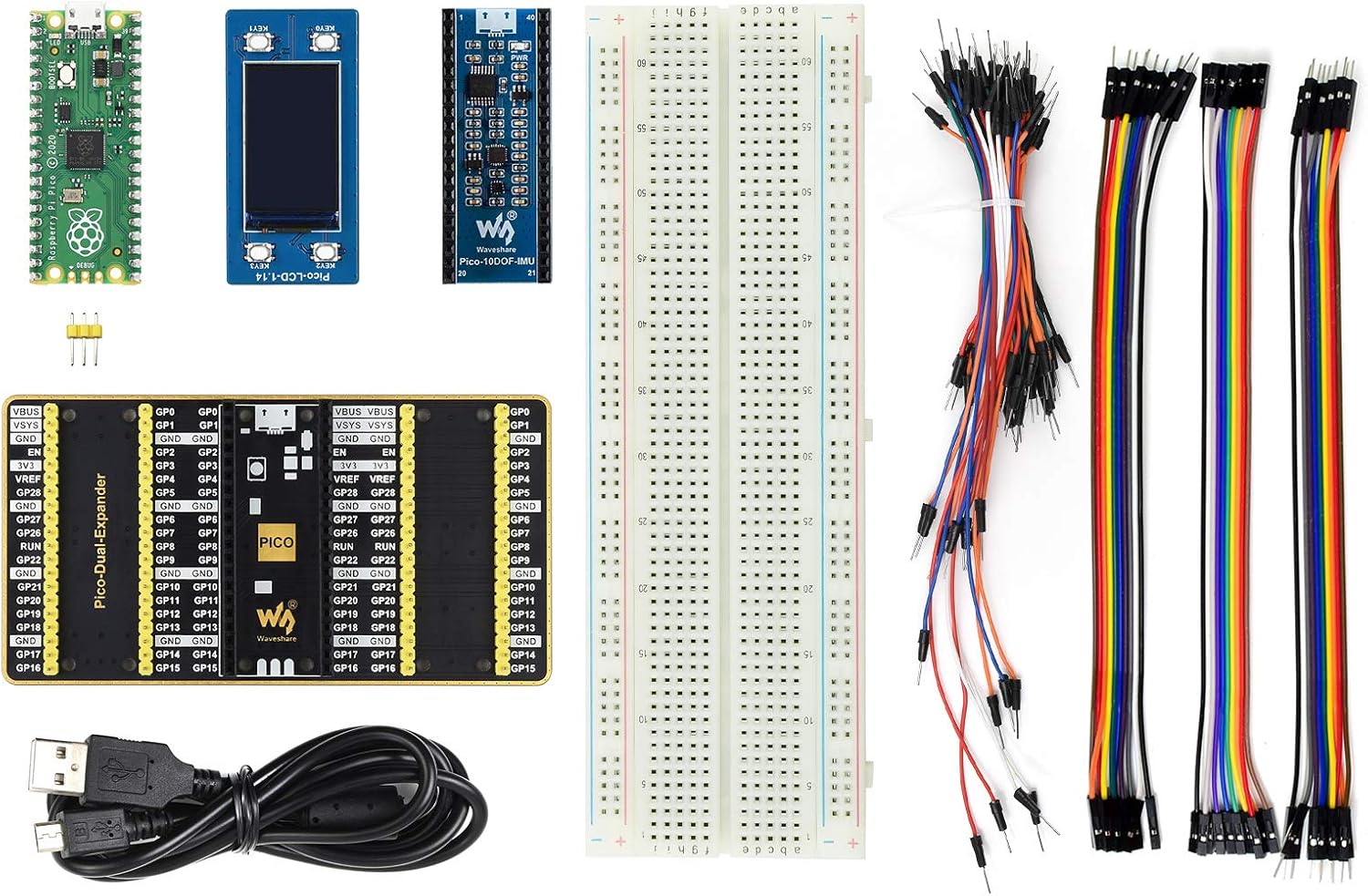

Raspberry Pi Pico Evaluation Kit (Type B) RPi Pico with Pre-Soldered Header+1.14 inch LCD Display+10-DOF IMU Sensor+GPIO Expander+Dual GPIO Expander

Raspberry Pi Pico Evaluation Kit (Type B), The Pico + Color LCD + IMU Sensor + GPIO Expander. Features Raspberry Pi Pico With Pre-Soldered Header RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 264KB of SRAM, and 2MB of on-board Flash memory 26 × multi-function GPIO pins 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels Pico-LCD-1.14 240×135 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect SPI interface, requires minimal IO pins 4x user buttons for easy interacting Pico-10DOF-IMU Onboard ICM20948 (3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer) for detecting motion gesture, orientation, and magnetic field Onboard LPS22HB barometric pressure sensor, for sensing the atmospheric pressure of the environment Pico-Dual-Expander Two sets of 2x20 male header, allows connecting more Raspberry Pi Pico expansion modules Clear pinout labels on the front side, easy to use Immersion gold process, beautiful & practical, stunning aesthetic looking 830 Quality Breadboard 630+200830 holes, with red/blue wires Dimensions: 165 × 55 × 10mm PACKAGE CONTENT Raspberry Pi Pico with pre-soldered header x1 Pico-LCD-1.14 x1 Pico-10DOF-IMU x1 Breadboard x1 13PIN yellow pin header x1 Pico-Dual-Expander x1 USB-A to micro-B cable x1 Jumper wires x1

• Raspberry Pi Pico Evaluation Kit Type B,Pico unit and Three basic expansion boards,Comes With Demo Code For GPIO, PWM, I2C, SPI
• A Low-Cost, High-Performance Microcontroller Board Raspberry Pi Pico With Pre-Soldered Header,With Flexible Digital Interfaces
• A 1.14 inch LCD display module specialized for Raspberry Pi Pico, embedded ST7789 driver, using SPI communication bus
• An IMU sensor expansion module specialized for Raspberry Pi Pico, it can be used to collect environment sensing data like temperature and barometric pressure
• A GPIO expander specialized for Raspberry Pi Pico, providing two sets of standard Raspberry Pi Pico GPIO male headers
