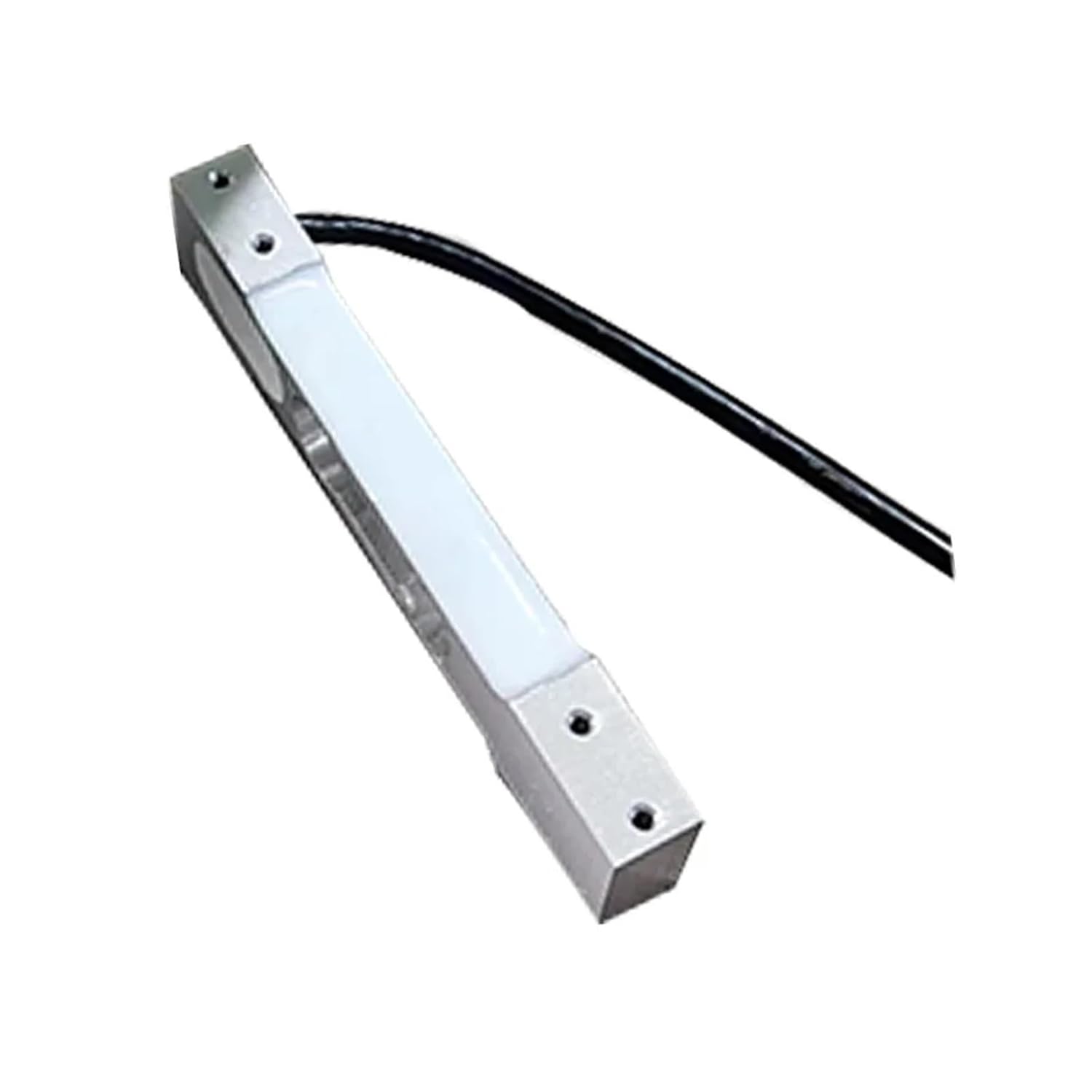

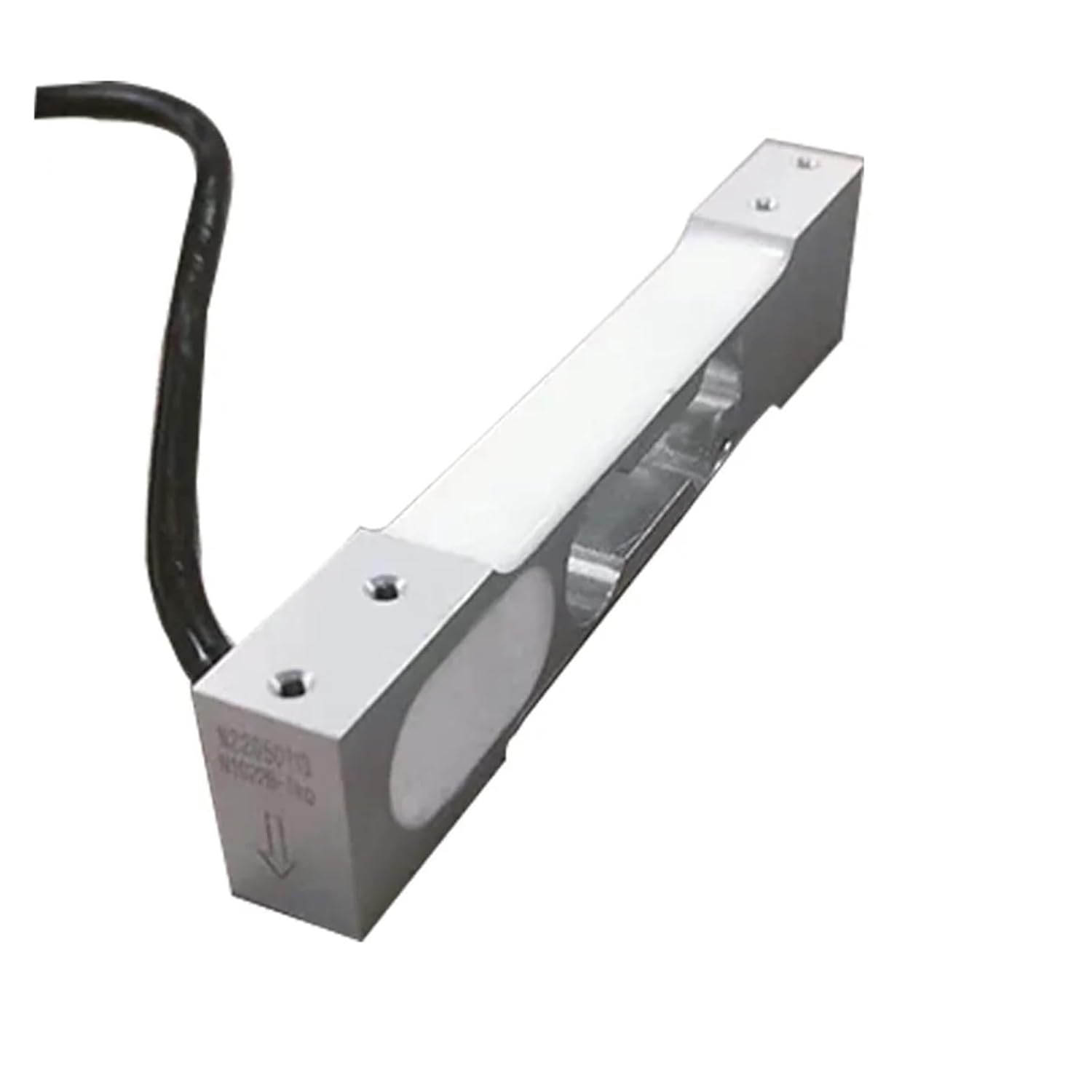

Single Point Balance Weighing Sensor with High Accuracy L6B-H Small Range Electronic Scale Scale Sensor for DIY Electronic
Product details
| Management number | 221499993 | Release Date | 2026/05/03 | List Price | $32.15 | Model Number | 221499993 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications:Theory : Resistance SensorUsage : Pressure SensorModel Number : L6B-HMaterial : MetalType : vibration sensorOutput : Analog SensorOrigin : Mainland ChinaRated load : 1kgPrecision : C3DMaximum calibration degree : 2500NmaxCombined error : ±0.030%F.SCreep : ±0.020%F.S/30minEffect of temperature on output sensitivity : ±0.021%F.S/10Effect of temperature on zero output : ±0.028%F.S/10Output sensitivity : 0.9±0.2mV/VInput impedance : 406±6Output impedance : 350±3Insulation impedance : 5000(50VDC)MZero output : 2%F.STemperature Compensation Range : -10~+40Allowed temperature range for use : -35~+70Recommended excitation voltage : 5~12(DC)VMaximum excitation voltage : 18(DC)VSafe overload range : 150%F.SLimit overload range : 300%F.SQuadrangle error : 0.02% loading value/100m
- Precision : C3D Maximum calibration degree : 2500Nmax Minimum calibration value : 5000Vmin
- Combined error : ±0.030%F.S Creep : ±0.020%F.S/30min Effect of temperature on output sensitivity : ±0.021%F.S/10
- Effect of temperature on zero output : ±0.028%F.S/10 Output sensitivity : 0.9±0.2mV/V
- Input impedance : 406±6 Output impedance : 350±3
- Insulation impedance : 5000(50VDC)M Zero output : 2%F.S
- Temperature Compensation Range : -10~+40
| Color | One Color |
|---|---|
| Brand Name | JCKJEDAT |
| Part Number | TFYATAYBA |
| Manufacturer | JCKJEDAT |
| Weight Capacity Maximum | 1 Grams |
