WITC RF Coax Adapter N Female to 2.92 mm Female Dc to 18 GHz High Frequency Coax Adapter 50 Ohm Stainless Steel VSWR 1.20 for RF Equipment Coaxial Cable Wireless LAN Radio Devices (Square-Flange)
$45.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.bergen-aesthetics.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$45.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.bergen-aesthetics.com
Free 30-day returns Details
Product details
| Management number | 221445841 | Release Date | 2026/05/03 | List Price | $18.40 | Model Number | 221445841 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

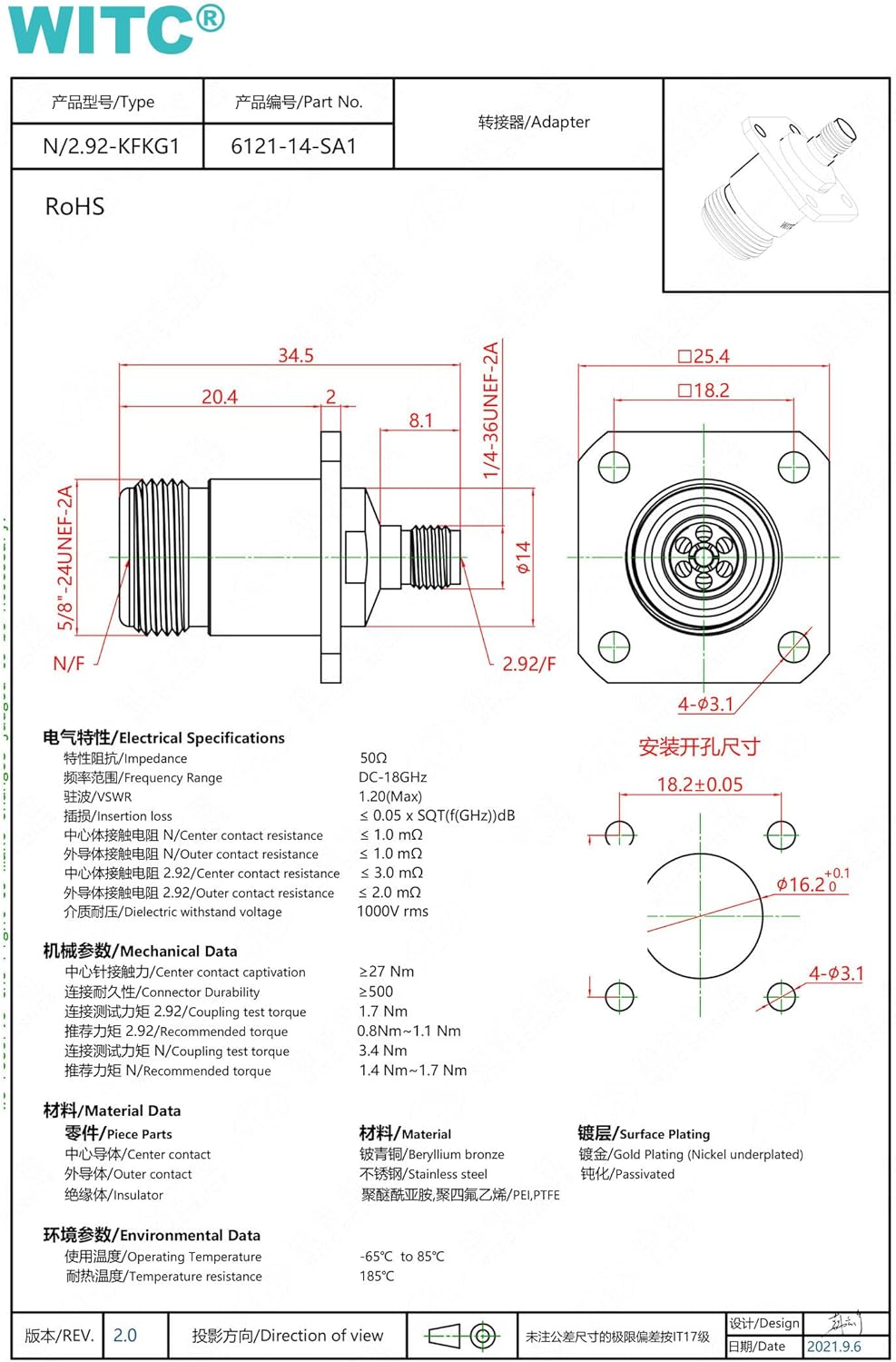

- [Adapter Specifications] Impedance: 50Ω.Frequency range: DC-18GHz.VSWR: 1.20(Max).Insertion loss: ≤0.05x SQRT (f(GHz))dB.Center contact resistance (N) : ≤1.0 mΩ.Outer contact resistance (N) : ≤1.0 mΩ.Center contact resistance (2.92) : ≤3.0 mΩ.Outer contact resistance (2.92) : ≤2.0 mΩ.Dielectric withstanding voltage: 1000 V rms.
- [Mechanical Data/Environmental Data]Center contact captivation：≥27Nm.Connector durability: ≥500.Coupling test torque(2.92): 1.7Nm.Recommended torque(2.92): 0.8Nm~1.1Nm.Coupling test torque(N): 3.4Nm.Recommended torque(N): 1.4Nm~1.7Nm.Operating temperature: -65℃ to 85℃.Temperature resistance: 185℃.
- [Quality Advantage] High-quality stainless steel and other materials guarantee product durability,service life,reliability,and stability in diverse applications.
- [Core Material] The material of the central conductor is beryllium bronze,and its surface plating is gold plated.The material of the outer conductor is stainless steel,and its surface plating is passivated.The material of the insulator is polyetherimide and polytetrafluoroethylene.
- [High-frequency Millimeter-wave Adapter Low Loss] WITC rf coax adapter aim to minimize signal loss,which is crucial for maintaining the integrity of high-frequency signals.Microwave rf coaxial adapters are constructed with materials and design techniques that minimize insertion loss and ensure efficient transmission.
| Brand | WITC |
|---|---|
| Color | silver |
| Finish | Metallic |
| Unit Count | 1.0 Count |
| Item Weight | 37.7 Grams |
| Manufacturer | WITC |
| Model Number | N/2.92-KFKG1 |
| Connector Type | Coaxial, Female to Female |
| Item Dimensions | 1.36 x 1 x 1 inches |
| Mfr Part Number | 6121-14-SA1 |
| Number of Items | 1 |
| Compatible Devices | Testing instruments and meters, Vector network analyzer,Antenna testing instruments,RF debugging equipment |
| Warranty Description | Our adapter is precisely made,reliable in quality,and does not include a warranty. |
| Specific Uses For Product | Professional rf component,for test & daily use |
